Product Description

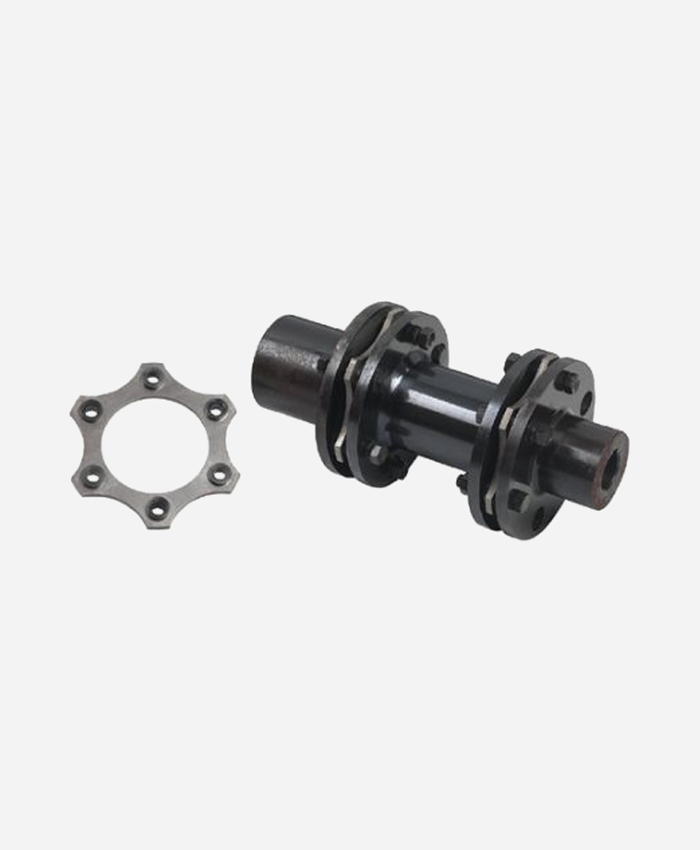

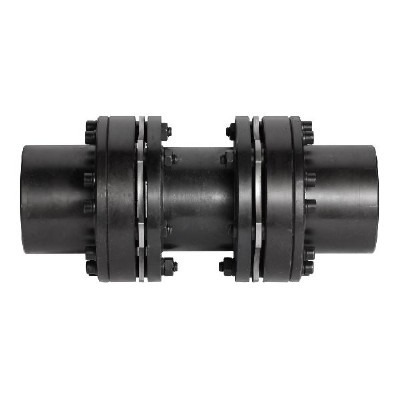

Hot Sale Flexible Shaft Coupler Clamp Coupling Machining Aluminum Double Diaphragms Coupling


Product Description

Coupling refers to a device that connects 2 shafts or shafts and rotating parts, rotates together during the transmission of motion and power, and does not disengage under normal conditions. Sometimes it is also used
as a safety device to prevent the connected parts from bearing excessive load, which plays the role of overload protection.

Couplings can be divided into rigid couplings and flexible couplings. Rigid couplings do not have buffering property and the ability to compensate the relative displacement of 2 axes. It is required that the 2 axes be strictly aligned. However, such couplings are simple in structure, low in manufacturing cost, convenient in assembly and disassembly, and maintenance, which can ensure that the 2 axes are relatively neutral, have large transmission torque, and are widely used. Commonly used are flange coupling, sleeve coupling and jacket coupling.

Flexible coupling can also be divided into flexible coupling without elastic element and flexible coupling with elastic element. The former type only has the ability to compensate the relative displacement of 2 axes, but cannot cushion and reduce vibration. Common types include slider coupling, gear coupling, universal coupling and chain coupling; The latter type contains elastic elements. In addition to the ability to compensate the relative displacement of 2 axes, it also has the functions of buffering and vibration reduction.

Our leading mainly including universal couplings, drum gear couplings, elastic couplings etc.
Main production equipments:
Large lathe, surface grinder, milling machine, spline milling machine, horizontal broaching machine, gear hobbing machine, shaper, slotting machine, bench drilling machine, radial drilling machine, boring machine, band sawing machine, horizontal lathe, end milling machine, crankshaft grinder, CNC milling machine, etc.

Coupling performance
1) Mobility. The movability of the coupling refers to the ability to compensate the relative displacement of 2 rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation and deformation under load all put CHINAMFG requirements for mobility. The movable performance compensates or alleviates the additional load between shafts, bearings, couplings and other components caused by the relative displacement between rotating components.
(2) Buffering. For the occasions where the load is often started or the working load changes, the coupling shall be equipped with elastic elements that play the role of cushioning and vibration reduction to protect the prime mover and the working machine from little or no damage.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, easy to assemble, disassemble and maintain.

Product Parameters

Inspection equipment:
Dynamic balance tester, high-speed intelligent carbon and sulfur analyzer, Blochon optical hardness tester, Leeb hardness tester, magnetic yoke flaw detector etc.

It is widely used in metallurgical steel rolling, wind power, hydropower, mining, engineering machinery, petrochemical, lifting, paper making, rubber, rail transit, shipbuilding and marine engineering and other industries.

How to select the appropriate coupling type
The following items should be considered when selecting the coupling type.
1. The size and nature of the required transmission torque, the requirements for buffering and damping functions, and whether resonance may occur.
2. The relative displacement of the axes of the 2 shafts is caused by manufacturing and assembly errors, shaft load and thermal expansion deformation, and relative movement between components.
3. Permissible overall dimensions and installation methods, and necessary operating space for assembly, adjustment and maintenance. For large couplings, they should be able to be disassembled without axial movement of the shaft.
In addition, the working environment, service life, lubrication, sealing, economy and other conditions should also be considered, and a suitable coupling type should be selected by referring to the characteristics of various couplings.
If you cannot determine the type, you can contact our professional engineer.
               Q: Why choose Shengao product?
               A: We have our own factory, therefore, we can surely promise the quality of product and provide
                   you competitive price.

               Q: Do you provide OEM Service?
               A: Yes, we provide OEM Service.

               Q: Do you provide customized machining parts?
               A: Yes. Customers give us drawings and specifications, and we will produce accordingly.

               Q: What is your payment term?
               A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.

               If there’s anything we can help, please feel free to contact with us.

  /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

View More

Industries and Use Cases for Diaphragm Couplings

Diaphragm couplings find applications in various industries due to their flexibility, precision, and ability to handle misalignment. Here are some common industries that commonly use diaphragm couplings and their specific use cases:

1. Industrial Machinery:

In the industrial machinery sector, diaphragm couplings are utilized for:

• Power transmission in pumps and compressors
• Motion control systems in robotics and automation
• Drive systems for conveyors and material handling equipment
• Motion control applications in packaging and printing machinery
2. Oil and Gas:

In the oil and gas industry, diaphragm couplings are commonly used in:

• Gas compressors and turbine drives
• Extraction pumps and mud pumps
• Rotating equipment on offshore platforms
• Power transmission in drilling rigs
3. Steel and Metal Processing:

Diaphragm couplings play a vital role in the steel and metal processing industry, where they are used in:

• Rolling mills and metal forming equipment
• Continuous casting machines
• High-temperature furnace drives
• Steel shears and cutters
4. Aerospace and Defense:

In the aerospace and defense sector, diaphragm couplings are utilized in:

• Aircraft engine power transmission
• Missile and satellite systems
• Airborne radar and avionics equipment
• Military vehicle drivetrains
5. Marine:

In the marine industry, diaphragm couplings are commonly found in:

• Marine propulsion systems
• Shipboard pumps and compressors
• Power transmission in marine generators
• Steering systems for marine vessels
6. Chemical and Process Industries:

In the chemical and process industries, diaphragm couplings are used in:

• Chemical processing pumps and compressors
• Agitators and mixers
• Reaction vessels and reactors
• Chemical plant material handling systems

These examples represent just a few of the many industries where diaphragm couplings are utilized. Their ability to handle misalignment, dampen vibrations, and transmit torque reliably makes them an integral part of various mechanical systems in different sectors.

Design Considerations for Selecting a Diaphragm Coupling for a Specific Application

When choosing a diaphragm coupling for a particular application, several crucial design considerations should be taken into account. Each application has unique requirements, and selecting the right diaphragm coupling can significantly impact the overall performance and reliability of the system. Here are the key design considerations:

• 1. Torque Capacity:

Determine the maximum torque that the diaphragm coupling will need to transmit in the application. Select a diaphragm coupling with a torque capacity that comfortably exceeds the application’s peak torque requirements. Consider potential torque variations during operation and choose a coupling that can handle the dynamic torque conditions, especially in machines with frequent start-stop cycles or load fluctuations.

• 2. Misalignment Tolerance:

Assess the potential misalignment between the connected shafts in the application. Diaphragm couplings are known for their ability to compensate for various types of misalignment, such as axial, angular, and parallel misalignment. Determine the expected misalignment angles and choose a diaphragm coupling with the appropriate misalignment capabilities to ensure smooth operation and minimize stress on the coupling and connected machinery.

• 3. Speed and RPM:

Consider the rotational speed and RPM (revolutions per minute) requirements of the application. Diaphragm couplings are suitable for high-speed applications due to their balanced design and ability to dampen vibrations. Ensure that the selected coupling can handle the required RPM without encountering critical speed issues or exceeding its rated limitations.

• 4. Operating Environment:

Evaluate the environmental conditions in which the diaphragm coupling will operate. Consider factors such as temperature, humidity, presence of corrosive substances, and exposure to contaminants. Choose a diaphragm coupling made from materials suitable for the specific operating environment to prevent corrosion and premature wear.

• 5. Space Constraints:

Diaphragm couplings have a compact design, making them suitable for applications with limited space. Consider the available installation space and choose a coupling that fits within the available dimensions while providing the required torque capacity and misalignment compensation.

• 6. Maintenance Requirements:

Assess the maintenance requirements of the diaphragm coupling. Some couplings may require periodic lubrication, while others are maintenance-free. Choose a coupling with maintenance requirements that align with the resources and capabilities of the maintenance team.

• 7. Application-specific Factors:

Consider any unique factors relevant to the application, such as the presence of shock loads, dynamic balancing requirements, or the need for precision in high-accuracy systems. These specific factors can influence the selection of the most suitable diaphragm coupling for the application.

By carefully considering these design factors, engineers and designers can select the most appropriate diaphragm coupling for a specific application. The right coupling choice will enhance the overall performance, reliability, and service life of the machinery or equipment in which it is employed.

Are There Any Industry Standards or Certifications for Diaphragm Couplings?

Yes, there are industry standards and certifications that apply to diaphragm couplings, ensuring their quality, performance, and safety. Some of the notable standards and certifications include:

1. American Petroleum Institute (API) Standards: API provides standards for various equipment and components used in the oil and gas industry. For diaphragm couplings used in oil and gas applications, compliance with API standards ensures that the couplings meet specific requirements and are suitable for use in demanding environments.
2. American Gear Manufacturers Association (AGMA) Standards: AGMA sets standards for various types of couplings, including diaphragm couplings. These standards cover design considerations, materials, performance, and safety factors, ensuring that couplings adhere to industry best practices.
3. International Organization for Standardization (ISO) Standards: ISO has several standards relevant to couplings in general, which can also apply to diaphragm couplings. ISO standards ensure global consistency in terms of design, manufacturing, and performance criteria.
4. European Conformity (CE) Marking: Diaphragm couplings intended for sale within the European Economic Area (EEA) must bear the CE marking, indicating that they comply with relevant European Union (EU) directives, including safety and environmental requirements.
5. American National Standards Institute (ANSI) Standards: ANSI sets standards for various industrial equipment, including couplings. ANSI standards provide guidelines for design, materials, and performance, ensuring safe and reliable operation.
6. Occupational Safety and Health Administration (OSHA) Compliance: Although not a specific certification for diaphragm couplings, compliance with OSHA regulations is essential to ensure the safety of workers who operate and maintain equipment with diaphragm couplings.

Manufacturers of diaphragm couplings often seek these certifications and comply with relevant industry standards to demonstrate the quality and reliability of their products. Customers and end-users can look for these certifications and standards compliance when selecting diaphragm couplings for their applications, as it provides assurance of the coupling’s performance and adherence to safety requirements.
